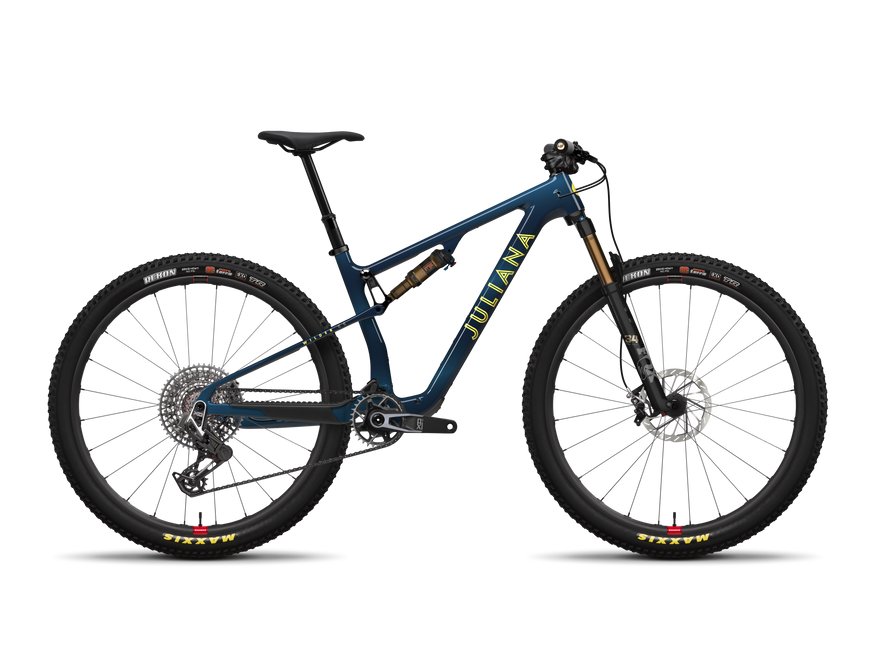

Wilder GX AXS Trail
Build Kit & Specs
*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.
| Frame | |
|---|---|
| Material | |
| Features | |
| Suspension | |
| Fork | |
| Shock | |
| Drivetrain | |
| Rear Derailleur | |
| Shifter | |
| Crankset | |
| Cassette | |
| Chain | |
| Bottom Bracket | |
| Brakes | |
| Brakes | |
| Front Rotor | |
| Rear Rotor | |
| Cockpit | |
| Handlebars | |
| Stem | |
| Grips | |
| Headset | |
| Seatpost | |
| Saddle | |
| Wheels | |
| Front Rim | |
| Front Hub | |
| Front Tire | |
| Rear Rim | |
| Rear Hub | |
| Rear Tire | |
| Valves | |
| Ebike | |
| Battery | |
| Drive Unit | |
| Specs | |
| Headset | |
| Seat Post Diameter | |
| Seat Clamp Diameter | |
| Rear Brake Mount | |
| Bottom Bracket Shell | |
| Max Tire Clearance | |
| Max Chainring Size | |
| Water Bottle Mounts | |
| Shock Length | |
| Shock Stroke | |
| Shock Bushing Sizes | |
| Shock Bushing Sizes | |
| Shock Mounting Hardware Upper | |
| Shock Mounting Hardware Lower | |
| Fork Offset |
Wilder GX AXS Trail
Sizing & Geometry
Find your Size
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.
Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.
Small
Medium
Large
154cm
5'1"
-
165cm
5'5"
Reach: 425mm
165cm
5'5"
-
175cm
5'9"
Reach: 450mm
175cm
5'9"
-
185cm
6'1"
Reach: 470mm
All units are in millimeters or degrees.
| s | m | l | |
|---|---|---|---|
| A. Reach | 412.3 | 437.8 | 457.5 |
| B. Stack | 587.4 | 597 | 606.5 |
| Head tube angle | 67.1º | 67.1º | 67.1º |
| L. Seat Tube Length | 405 | 430 | 470 |
| F. Front Center | 695 | 723.7 | 747.4 |
| H. BB Height | 339.9 | 339.7 | 339.6 |
| I. BB Drop | 32.6 | 32.8 | 32.9 |
| Wheel base | 1125.8 | 1157 | 1183.2 |
| G. Rear Center | 430.8 | 433.3 | 435.8 |
| Headtube length | 90 | 100 | 110 |
| M. Top Tube Length | 568.4 | 597.3 | 621.4 |
| D. Seat Tube Angle | 75.1º | 75º | 74.9º |
| J. Standover Height | 743.5 | 746.4 | 745.4 |
Wilder GX AXS Trail
Setup & Support
Whether you’re the proud owner of a Wilder or are just digging deep into the details you’ll find it all here.
(2025) Fox Float SL LV Perf. Elite
| Rider weight lbs | Rider weight kgs | Pressure | Sag | Rebound single |
|---|---|---|---|---|
| 100 | 45 | 95 | 28-30%, 12.5-13.5mm | 8 |
| 120 | 54 | 120 | 28-30%, 12.5-13.5mm | 7 |
| 140 | 64 | 140 | 28-30%, 12.5-13.5mm | 7 |
| 160 | 73 | 165 | 28-30%, 12.5-13.5mm | 6 |
| 180 | 82 | 190 | 28-30%, 12.5-13.5mm | 6 |
| 200 | 91 | 210 | 28-30%, 12.5-13.5mm | 6 |
| 220 | 100 | 235 | 28-30%, 12.5-13.5mm | 5 |
| 240 | 109 | 260 | 28-30%, 12.5-13.5mm | 5 |
| 260 | 118 | 280 | 28-30%, 12.5-13.5mm | 5 |
(2025) Fox 34 SC 120 29 Perf. Elite
| Rider weight lbs | Rider weight kgs | Pressure | Rebound single |
|---|---|---|---|
| 100 | 45 | 49 | 15 |
| 120 | 54 | 58 | 13 |
| 140 | 64 | 68 | 11 |
| 160 | 73 | 77 | 9 |
| 180 | 82 | 86 | 7 |
| 200 | 91 | 96 | 5 |
| 220 | 100 | 105 | 3 |
| 240 | 109 | 114 | 1 |
(2024) Fox 34 SC 120 29 Perf. Elite
| Rider weight lbs | Rider weight kgs | Pressure | Rebound single |
|---|---|---|---|
| 120 | 54 | 58 | 12 |
| 130 | 59 | 63 | 11 |
| 140 | 64 | 68 | 10 |
| 150 | 68 | 72 | 9 |
| 160 | 73 | 77 | 8 |
| 170 | 77 | 82 | 7 |
| 180 | 82 | 86 | 6 |
| 190 | 86 | 91 | 6 |
| 200 | 91 | 96 | 5 |
| 210 | 95 | 100 | 4 |
| 220 | 100 | 105 | 3 |
| 230 | 104 | 110 | 2 |
(2024) Fox Float Perf Elite
| Rider weight lbs | Rider weight kgs | Pressure | Sag | Rebound single |
|---|---|---|---|---|
| 100 | 45 | 95 | 28-30%, 12.5-13.5mm | 7 |
| 120 | 54 | 110 | 28-30%, 12.5-13.5mm | 6 |
| 140 | 64 | 125 | 28-30%, 12.5-13.5mm | 6 |
| 160 | 73 | 140 | 28-30%, 12.5-13.5mm | 5 |
| 180 | 82 | 155 | 28-30%, 12.5-13.5mm | 5 |
| 200 | 91 | 170 | 28-30%, 12.5-13.5mm | 4 |
| 220 | 100 | 190 | 28-30%, 12.5-13.5mm | 4 |
| 240 | 109 | 205 | 28-30%, 12.5-13.5mm | 3 |
| 260 | 118 | 225 | 28-30%, 12.5-13.5mm | 3 |
Upper Link
| label | name | quantity | part_number | blurb |
|---|---|---|---|---|
| A | 29-22532 | 1 | Upper Link | |
| B | 11-12681 | 2 | 6900-2RS Bearing | |
| C | 26-15533 | 2 | M10x3 Washer | Apply grease to inner surface |
| D | 26-22561 | 1 | 10x35.25 Bearing spacer | |
| E | 26-18690 | 2 | Bearing Dust Shield | Apply grease to inner surface |
| F | 11-12681 | 2 | 6900-2RS Bearing |
Loading
Rear Axle, Chainstay Protector, Derailleur Hanger, and Chainguide
| label | name | quantity | part_number | blurb | torque |
|---|---|---|---|---|---|
| A | 08-22209 | 1 | Rear axle 12x173.7 | Apply grease to shaft and threads | |
| B | 23-23491 | 1 | SCB UDH | Interchangeable with Sram UDH | |
| C | 26-23492 | 1 | SCB UDH screw | Reverse thread | 20 Nm |
| D | 30-20189 | 1 | Chainstay Protector | ||
| E | 30-20189 | 1 | Chainstay Protector | ||
| F | 30-21453 | 1 | Seatstay Protector | ||
| G | 26-22570 | 1 | M5x12 HHS | Apply Loctite 242 to threads | 2 Nm |
| H | 26-22571 | 1 | OneUp chainguide back plate | ||
| I | 26-22572 | 1 | OneUp chainguide mount | ||
| J | 26-22938 | 2 | M4x10 FHCS | Apply Loctite 242 to threads | 0.65 Nm |
| K | 19-22609 | 1 | OneUp chainguide |
Loading
Downtube Protector, Bottle Cage Bolts, Seat Collar, and Headbadge
| label | name | quantity | part_number | blurb | torque |
|---|---|---|---|---|---|
| A | 67-19217 | 1 | Head Tube Badge | Clean frame surface, center on headtube | |
| B | 26-20124 | 7 | M5x16 Water Bottle screw | Apply grease to threads | |
| C | 30-22562 | 1 | Downtube Protector | ||
| D | 26-18382 | 1 | M4x12 BHC | Apply grease to treads | 0.65 Nm |
| E | 34-20201 | 1 | 36.4 Seat Collar |
Loading
Lower Pivot Bearings
| label | name | quantity | part_number | blurb |
|---|---|---|---|---|
| A | 26-22531 | 1 | 15x38.25 Bearing spacer | |
| B | 11-12218 | 2 | 6902-2RS Max Bearing | |
| C | 26-11612 | 2 | Bearing Dust Shield | Apply grease to inner surface |
Loading
Upper Link and Lower Pivot Hardware
| label | name | quantity | torque | part_number | blurb |
|---|---|---|---|---|---|
| A | 26-20122 | 2 | 16 Nm | M10x23 Screw | Apply Loctite 242 to threads only, apply grease to shaft only |
| B | 26-22662 | 2 | 20 Nm | M8x35 Shock Bolt | Apply Loctite 242 to threads |
| C | 08-23720 | 1 | 13.6 Nm | Pivot Axle M10x81 | Apply Loctite 242 to threads only, apply grease to shaft only |
| D | 26-15632 | 1 | M5 Tapered Washer | Apply grease to surface | |
| E | 26-12652 | 1 | M5 Washer | ||
| F | 26-15946 | 1 | 5.6 Nm | M5x20 SHCS | Apply Loctite 242 to threads |
| G | 08-22530 | 1 | 20 Nm | Pivot axle M15x90.75 | Apply Loctite 242 to threads only, apply grease to shaft only |
| H | 26-15633 | 1 | M6 Tapered Washer | Apply grease to surface | |
| I | 26-11817 | 1 | M6 Washer | ||
| J | 26-15947 | 1 | 9 Nm | M6x20 SHCS | Apply Loctite 242 to threads |
Loading
If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
Wilder GX AXS Trail
$6,699.00
USD
Regular price
We build Juliana bicycles to be durable and long lasting, and then back them up with legendary support and a warranty of the highest standard.
Juliana Bicycles offers free replacement pivot bearings to the original owner for as long as they own their bike.
Carbon
C
Front (MM)
120
Rear (MM)
115
Wheel Size
29
25.99
11.79
Weight (lbs)
25.99
Weight (kg)
11.79
We've taken all the acceleration and out-of-the-saddle sprint qualities of a carbon XC race rocket and fused them with a rear end that still rails corners like a hardcore trail bike. The result? A bike fast enough to win, fun enough to frolick. Meet the wild child of XC.
Dig Deep
Specs, sizing and support for the Wilder GX AXS Trail
Geometry& Sizing
Build kit& Specs
